Indoor · Micro LED

GREEN Series Micro LED video wall

COB Micro LED designed to draw less power and run cooler. The same image quality as our flagship walls, with lower running costs over the life of the screen.

Request a quote Specifications

Average power: ≤100 W/m²Average power
Contrast ratio: 1,000,000:1Contrast ratio
Refresh rate: 3,840 HzRefresh rate
Pixel pitch: P0.94–P1.88Pixel pitch

Overview

Brilliant image, lower energy

GREEN Series uses chip-on-board (COB) panels, an efficient drive design and better heat dissipation to cut power consumption without losing uniformity or colour accuracy.

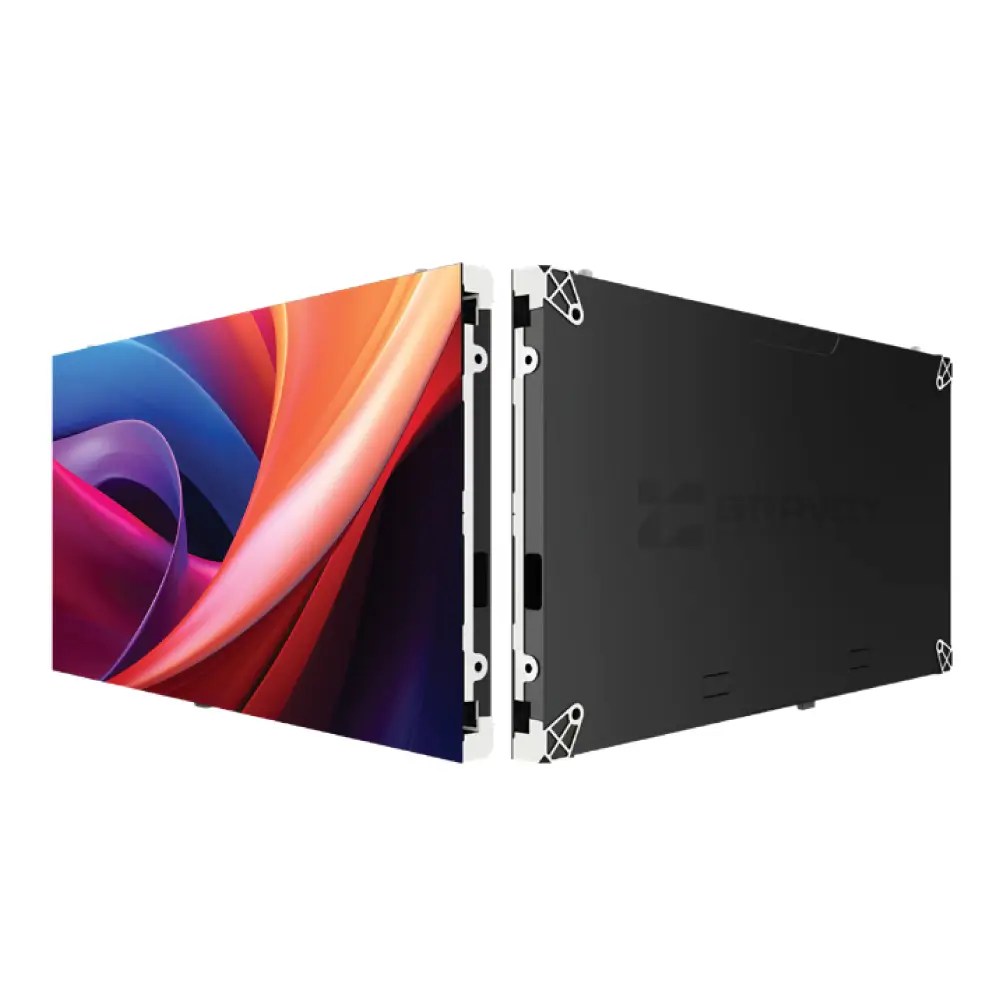

Panels weigh 3.9 kg in a 16:9 format, so large canvases are quick to build and splice.

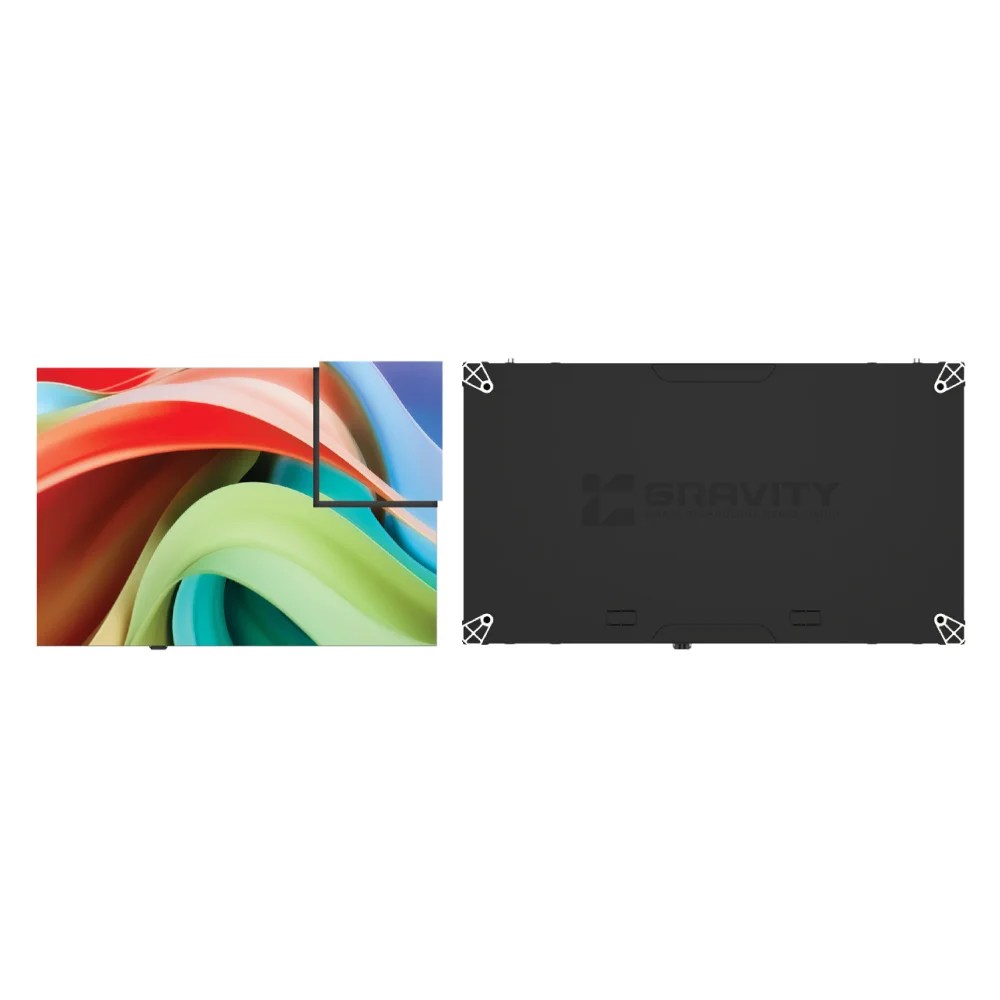

COB panels for a robust, uniform surface
Adjustable 3,000–10,000 K colour temperature
170° / 170° viewing angle

P0.94from ~0.9 m

P1.25from ~1.3 m

P1.56from ~1.6 m

P1.88from ~1.9 m

Pixel spacing at roughly actual size on a desktop monitor, with the closest comfortable viewing distance for each pitch.

In detail

Key features

Why GREEN Series

Low power draw

Average consumption of ≤100 W/m² for the life of the wall.

Cooler running

Less heat output means less load on room cooling.

High clarity

Micro LED detail with smooth, even colour.

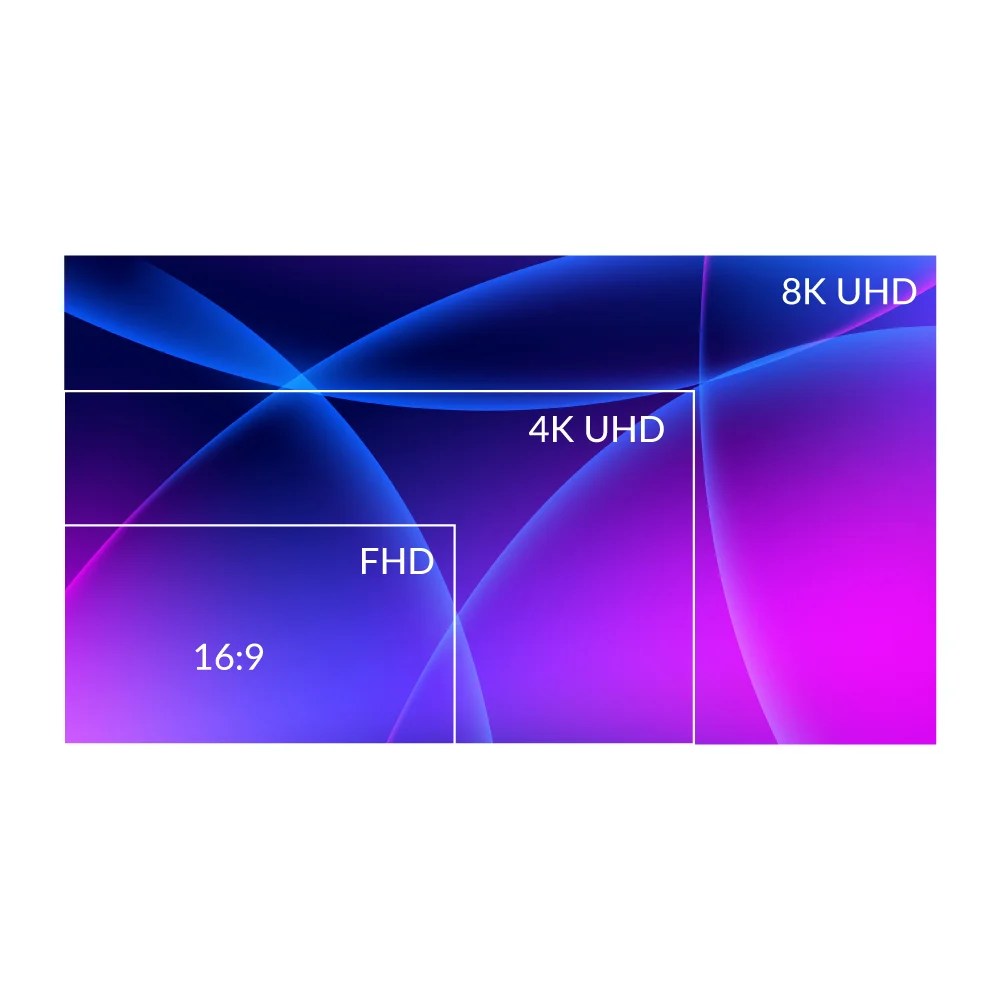

Invisible seams

Build large canvases with no visible joins.

Applications

Made for screens that never switch off

Less energy and less cooling add up over years of operation. GREEN suits walls that run all day, every day.

Corporate lobbies and reception walls
Control rooms with long operating hours
Retail flagships and public venues
Fit-outs with sustainability targets

Specifications

The numbers

Typical values per model. Ask us for the full datasheet or a custom configuration.

Specification	GG-09L	GG-12L	GG-12LA	GG-15LA	GG-18L
Pixel pitch (mm)	0.9375	1.25	1.25	1.5625	1.875
Resolution per panel	640 × 360	480 × 270	480 × 270	384 × 216	320 × 180
Peak power (W/m²)	≤ 300	≤ 285	≤ 300	≤ 310	≤ 300
Average power (W/m²)	≤ 100	≤ 95	≤ 100	≤ 105	≤ 100

All models: panel 600 × 337.5 × 34.6 mm · module 150 × 168.75 mm · COB · 600 nits · 1,000,000:1 contrast · 3,840 Hz refresh · 60 Hz frame rate · 170° / 170° viewing · AC 100–240 V · 100,000 h lifetime · −10 to 40 °C · 3.9 kg per panel.
